Barcodes are a crucial part of modern inventory management and product tracking. However, when it comes to space-constrained applications, using a small barcode becomes essential.

In this article, we'll dive into how small can a barcode be, examining the factors that determine barcode minimum size and providing insights into the practical uses of tiny barcodes.

Factors Determining the Size of a Barcode

The size of a barcode is influenced by various elements, including the type of barcode, the amount of data it needs to store, the printing resolution, and the scanning capabilities.

Understanding these factors helps in determining the smallest possible size for a barcode without compromising its functionality.

1. Type of Barcode

Different barcode symbologies have unique size requirements:

● Linear Barcodes (1D): These include UPC, EAN, and Code 128. They typically require more space due to their linear nature.

● 2D Barcodes: These include QR codes and Data Matrix codes. They are more compact and can store more information in a smaller area.

2. Data Capacity

The more data you need to encode, the larger the barcode must be. For example, a UPC barcode encodes a 12-digit number, whereas a QR code can encode up to several thousand characters.

3. Printing Resolution

High-resolution printing is essential for small barcodes. The finer the print quality, the smaller the barcode can be while still being readable.

4. Scanning Capability

Not all scanners are designed to read tiny barcodes. High-precision scanners are necessary to read small, high-density barcodes accurately.

Minimum Size for Different Barcodes

Let's explore the barcode minimum size for some common barcode types:

1. Linear Barcodes

● UPC-A: The standard size for a UPC-A barcode is 1.469 inches wide and 1.02 inches high.

The minimum X-dimension (the width of the narrowest bar) for a UPC-A barcode is 0.013 inches (0.33 mm). Reducing the width below this can cause readability issues.

● Code 128: This versatile barcode can be used in various applications, including shipping and packaging.

The minimum X-dimension is 0.0075 inches (0.19 mm), making it possible to create smaller barcodes compared to UPC.

2. 2D Barcodes

● QR Code: QR codes are designed to be compact and robust. They can be as small as 0.4 x 0.4 inches (10 x 10 mm), depending on the data encoded and the printer's resolution.

● Data Matrix: This is one of the most efficient 2D barcodes for encoding a lot of information in a tiny space. They can be as small as 0.1 x 0.1 inches (2.5 x 2.5 mm), making them ideal for very small items.

Practical Applications of Tiny Barcodes

1. Electronics

In the electronics industry, space is often at a premium. Tiny barcodes are used on circuit boards and small components to track parts and manage inventory efficiently.

2. Healthcare

Medical devices, vials, and lab samples often require small barcodes due to their limited surface area. Using Data Matrix codes can ensure all necessary information is encoded without taking up too much space.

3. Retail

For small retail items such as cosmetics, jewelry, and accessories, tiny small barcodes are essential. They allow for efficient inventory tracking and sales processing without overwhelming the product's design.

Best Practices for Implementing Small Barcodes

● Choose the Right Barcode Type: Select a barcode symbology that fits your space and data requirements.

● Optimize Print Quality: Utilize high-resolution printing methods to produce clear, crisp barcodes.

● Test Readability: Verify the barcode's readability with various barcode scanners.

● Limit Data Content: Encode only the most critical information to minimize the barcode size.

To summarize, understanding how small can a barcode be is vital for applications where space is limited.

The barcode minimum size varies based on the type of barcode, data content, and printing quality.

By adhering to best practices, you can effectively use tiny barcodes to manage products and streamline operations.

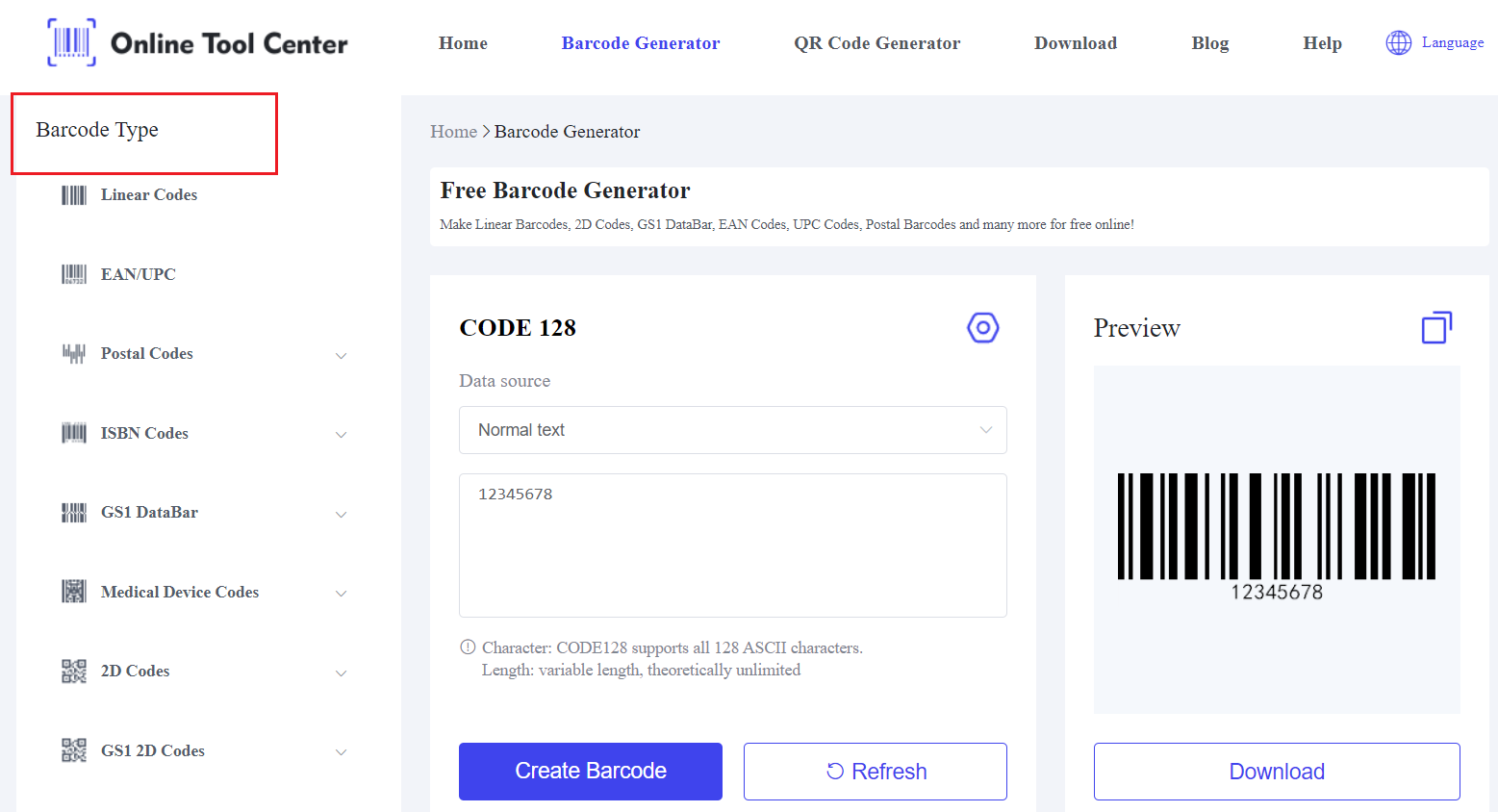

To create small barcodes tailored to your specific needs, visit a barcode generator. Our free barcode generator allows you to design and download barcodes that fit perfectly into limited spaces without sacrificing readability.

Embrace the power of tiny barcodes and enhance your business processes today!
